Contested Turf in San Francisco Bay Area Sports Field Design / Designing for Synthetic Turf Fields

Sports fields provide a surprisingly complex terrain for landscape architects. Multi-use athletic fields ground significant contemporary themes in landscape architecture’s professional and academic worlds: the duality of the natural and the artificial, ecology as the protagonist of a design, and the unsung role of maintenance. Conversations during their site design process can play into a cultural aversion to material artifice or into the aesthetic preference for an evergreen lawn inherited from England.

Benefits to Synthetic Turf Field Applications

The following land use, ecological, and athletic issues contribute to the growing use of synthetic turf:

- conflicting demands of natural turf for maintenance (which, like other biotic things, needs to breathe) and of a large population for play space in the expensive San Francisco Bay Area,
- shrinking maintenance budgets,
- creating a literal ‘even playing field,’ by avoiding soil’s lumpiness and grading for drainage, and
- growing public demand for low-water, drought-resilient landscapes.

Evolving Scientific Research and Site Design

But a synthetic turf sports field also raises emotionally-charged concern over its impact on the environment and on health and safety of athletes, especially children.

On public projects, landscape architects are caught in between those convinced synthetic turf is harmful and those convinced synthetic turf is safe, each citing different studies. Anticipating this challenge, Carducci Associates mediates between the diverse priorities of public field users, scientific findings, and clients. Bringing scientists, with expertise in the material components of synthetic turf and in research processes, into design and public processes helps.

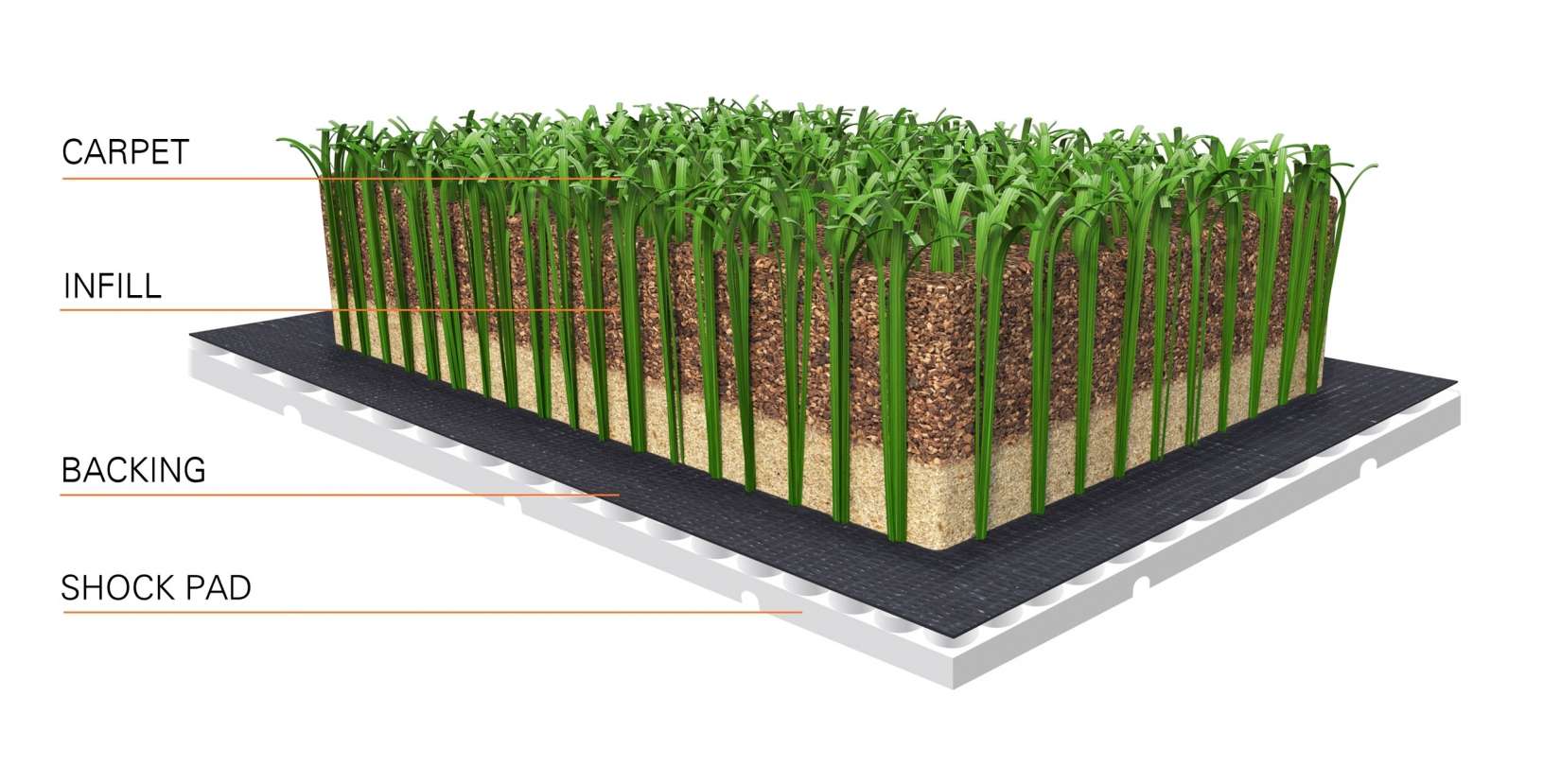

Within the nuanced process of designing a synthetic turf field, infill has become one of the most controversial components. A granular material that works as a synthetic stand-in for soil, infill is often comprised of crumbled, recycled rubber tires. Crumb rubber has raised concerns nationally and locally, from a recent artificial turf installation at the Beach Chalet Fields in San Francisco’s Golden Gate Park, to a multi-agency federal initiative launched in February 2016 known as the Federal Research Action Plan on Recycled Tire Crumb Use on Playing Fields and Playgrounds. In June 2015, the California Environmental Protection Agency the Office of Environmental Health Hazard Assessment (OEHHA) committed under a contract with CalRecycle to conduct a new study on synthetic turf and potential human health impacts.

While crumb rubber is under scrutiny, user groups are calling for infill alternatives that contain materials like recycled athletic shoes, cork and coconut, or other synthetic materials. The Los Angeles Unified School District and the New York City Department of Parks and Recreation no longer use crumb rubber. In the greater San Francisco Bay Area, dozens of facilities (including schools, public parks, the Facebook Corporate Campus) have used infill alternatives fabricated with cork, organic fiber, recycled turf, sand and TPE (a plastic).

Carducci Associates’ Leadership in Sports Field Design

For community meetings, Carducci Associates has analyzed more than a dozen synthetic turf infill materials with its team of experts: Principals Bill Fee and Vince Lattanzio, Associate Principal Wesley Bexton, Senior Associate Alvin Tang, and Associate Philip Dinh (bios here). While comparing playability, cost, material components, and maintenance, alongside a timeline of political, funding, and construction processes, we record and respond to public questions and concerns. Attendees’ priorities at recent community meetings focus on long-term ecological, economic and health concerns:

1. Install a non-crumb rubber field that allows for healthy recreation.

2. Study the lifecycle costs of crumb rubber and alternatives, beyond capital cost, to address disposal and longevity.

3. Consider phasing strategies that permit for more expensive alternative infills.

4. Cost is less of a priority than health and safety.

The results of current federal and state studies on crumb rubber infill have yet to surface in part because the health impacts of exposure will be studied during the hottest months of 2017. While agencies, designers and athletes wait for the outcome, landscape architects should study and incorporate the research findings that are available on crumb rubber and alternative infills, and engage in outreach and discussion with athletes, coaches and families on their preferences for and experiences with synthetic turf fields and different infill.

References

California Environmental Protection Agency Office of Environmental Health Hazard Assessment, “Synthetic Turf Studies,” last modified March 9, 2017, https://oehha.ca.gov/risk-assessment/synthetic-turf-studies.

Gutierrez, Melody, “US to mount multiagency study of health risks of synthetic turf,” San Francisco Chronicle, February 12, 2016, http://www.sfgate.com/nation/article/US-to-mount-multiagency-study-of-health-risks-of-6827632.php

United States Environmental Protection Agency, “Federal Research on Recycle Tire Crumb Used on Playing Fields,” last modified December 30, 2016, https://www.epa.gov/chemical-research/federal-research-recycled-tire-crumb-used-playing-fields.

Healdsburg High School Modernization / Basalt and Ice in a Drought-Tolerant Landscape

The recent modernization of Healdsburg High School illustrates design and construction ingenuity in drought-tolerant, accessible and educational landscapes. QKA, the architects, retained Carducci Associates to collaborate on a renovation of the school’s interior and exterior architecture, infrastructure and landscape. Carducci’s focus on Phase 2 saw the radical demolition of several building wings transform the school’s drop-off area into a sweeping plaza.

With an opportunity of this magnitude, Principal Vince Lattanzio and Senior Associate Tim Skinner (bios here) proposed a grand yet simple gesture. The administration desired an outdoor classroom with seating and gathering opportunities. As a response, the formal orchard layout of fruitless olive trees reflects the surrounding agricultural land of Sonoma County and blends harmoniously with the open plaza concept. Large freeform areas of synthetic turf soften the space and, along with neutral concrete paving, provide universal access to the entire plaza and outdoor classroom. The synthetic turf is also desirable from an educational program and maintenance perspective: it does not require irrigation or air- and noise-polluting mowers.

Basalt stone provides a sophisticated and natural seating opportunity, which creates a unique atmosphere at half the cost of cast-in-place concrete benches. The basalt sits directly on the synthetic turf, which has a deepened aggregate base to displace the weight and avoid expensive footings. The contractor had an ingenious method for craning the pieces into place and extracting their sling from under the stone without tearing the turf: ice. The crane set each piece of basalt in a super-elevated position on ice, and then removed the sling. As the ice melted, the stones eventually came to sit in their permanent spot. The students and staff alike fondly refer to the plaza as ‘their Stonehenge’.

Joseph Conrad Square / A Safer, More Sustainable Urban Landscape

From the windows of our San Francisco office, we can see the trees of Joseph Conrad Square, a mini-park in the heart of Fisherman’s Wharf. The Square provides a respite from its high-traffic surroundings; however, the last designer to touch this small, leafy park was Garrett Eckbo, in 1985.

In 2015, the Fisherman’s Wharf Community Benefit District hired Carducci Associates to design short-term improvements to the Square, which falls under the responsibility of the San Francisco Recreation and Parks Department. Currently, the city’s Municipal Transportation Agency (MTA) is also studying the Square as a possible T-Line MUNI station.

Principal Bill Fee and Associate Principal Jin Kim (bios here) proposed changes to the park that are based on the principles of Crime Prevention Through Environmental Design (CPTED). Modest strategies include tree pruning, lampposts, irrigation system upgrades and colorful, low growing and drought tolerant plants. An existing retaining wall will be painted bright orange as a place-making device: as in, “I will meet you at the orange wall.”

Following meetings with neighborhood residents this year, the San Francisco Recreation & Parks Department provided informal approval of the proposed design. The Department continues to move forward by raising funds, pruning trees and seeking approvals from the Mayor’s Office of Disability, for a categorical exemption from the Planning Department, and formal approval from the Recreation & Parks Commission. Once these goals are met, we will begin to install our design.

For current information on Joseph Conrad Square, visit here and here.

Below are original 1982 plan, paving and detail drawings by Garrett Eckbo with Eckbo Kay Associates.
